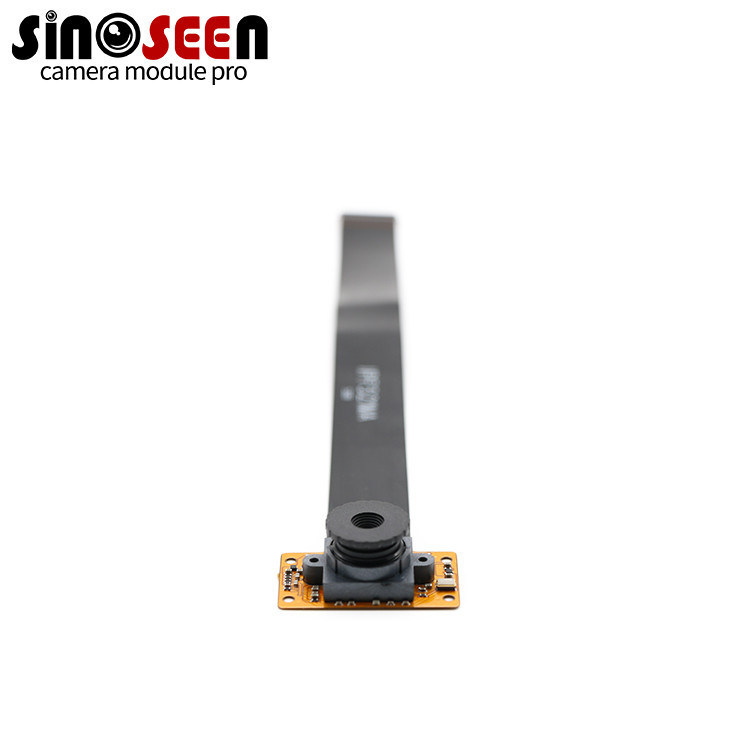

5MP AR0521 MIPI Camera Module with 2592x1944 Resolution for High-Detail Industrial and Machine Vision Applications
Datos del producto:
| Lugar de origen: | Shenzhen, China |
| Nombre de la marca: | Sinoseen |
| Certificación: | RoHS |
| Número de modelo: | SNS51734-V1. ¿Qué quiere decir?0 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 3 |
|---|---|
| Precio: | 10-100USD、negotiable |
| Detalles de empaquetado: | Bandeja+bolsa antiestática en caja de cartón |
| Tiempo de entrega: | 2-3 semanas |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 500000 piezas/mes |
|
Información detallada |
|||
| Tipo: | módulo de la cámara 5mp | Sensor: | 1/5 pulgada |
|---|---|---|---|
| Resolución: | 5MP 2592 (H) x 1944 (V) | Dimensiones: | (adaptable) |
| FOV de la lente: | 80° (opcional) | Tipo de enfoque: | Enfoque fijo |
| Interfaz: | Módulo de cámara mipi | Característica: | Alta definición |
| Resaltar: | 5MP MIPI camera module,AR0521 industrial camera module,high-resolution machine vision camera |
||
Descripción de producto
5MP AR0521 MIPI Camera Module with 2592x1944 Resolution
Product Description
The Sinoseen AR0521 5MP MIPI camera module delivers high-resolution imaging with a 2592x1944 pixel sensor. It features high dynamic range (HDR) for enhanced detail in bright and dark areas, ensuring precise, clear images for demanding industrial and machine vision applications.
Equipped with a MIPI interface, this module allows fast and stable data transfer for embedded systems, robotics, and surveillance devices. Adjustable parameters include brightness, contrast, white balance, gamma, and exposure, enabling fine-tuned image optimization.
Its fixed-focus M12 lens mount with 80° DFOV allows flexible integration into custom setups. The module supports low power consumption, reliable performance, and broad OS compatibility including Windows, Linux, macOS, and Android.
Highlights
- 5MP AR0521 CMOS sensor with 2592x1944 resolution
- High dynamic range (HDR) improves detail in bright and dark scenes
- MIPI interface for fast data transmission and embedded integration
- Adjustable brightness, contrast, white balance, exposure, gamma
- Fixed-focus M12 lens mount, DFOV 80°
Specification
| Model No | SNS51734-V1.0 |
|---|---|
| Sensor | 1/5'' inch |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.2µm x 1.2µm |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM Lens Size: 1/3 inch DFOV: 80° Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Power supply | mipi |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
