• 5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

Datos del producto:

Lugar de origen: PORCELANA
Nombre de la marca: Sinoseen
Certificación: RoHS
Número de modelo: El SNS-GM1133-V1.0

Pago y Envío Términos:

Cantidad de orden mínima: 5
Precio: 10-100USD、negotiable
Detalles de empaquetado: Bandeja+bolsa antiestática en caja de cartón
Tiempo de entrega: 2-3 semanas
Condiciones de pago: T/T
Capacidad de la fuente: 500000 piezas/mes
Mejor precio Contacto

Información detallada

Tipo de sensor: CMOS Tamaño del módulo: Dos capas 38 mmX38 mm
Entrada de audio: Entrada MIC de audio por canal interfaz estándar: Velocidad USB2.0
Tamaño de píxel: El 1.4µm x1.4µm Formato codificado: H.265/H.264
Consumo de energía: Sobre 140mA Distancia de objeto: LOS 6CM-200CM
Método de conducción: Conducir libre Número de F: 2.2
Corriente operativa: Se aplicarán los siguientes requisitos: Max Image Circle: 4.8 mm
Obra de arte: Diseño de 8 capas Garantía: 10 años
COMPATIBILIDAD: Windows, Mac, Linux
Resaltar:

5MP USB camera module for machine vision

,

VB1940 CMOS camera module with USB2.0

,

high-resolution USB camera module for imaging

Descripción de producto

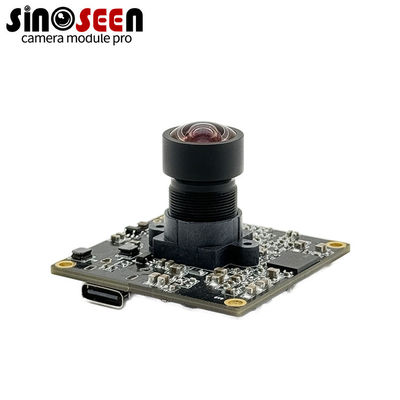

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
The Sinoseen 5MP USB2.0 CMOS camera module is designed for developers and system integrators who demand crisp image quality and stable performance. Powered by the VB1940 1/2.8-inch CMOS sensor, it captures 2592 *1944 resolution images with accurate color and superior low-light sensitivity, ideal for professional imaging solutions.
With plug-and-play USB2.0 connectivity, it ensures smooth installation and stable transmission up to 480MB/s. The module supports MJPG and YUV output, and is compatible with Windows, Mac, Linux, and Android platforms. Its robust design makes it suitable for AI vision, industrial inspection, surveillance, and video conferencing applications.
Key Features
  • 5MP VB1940 CMOS sensor for clear, sharp images
  • USB2.0 high-speed plug-and-play connection
  • Supports MJPG / YUV formats
  • Accurate color and excellent low-light imaging
  • Cross-platform compatibility: Windows, Linux, Mac, Android
  • Ideal for AI vision, industrial automation, and video systems
Technical Specifications
Signal SNS-GM1133-V1.0 Remarks
Image Sensor Size 1/2.8inch
Effective Pixels 2592H*1944V
Pixel size 2.0 um*2.0 um
Optical distortion <0.45%
Image sensor Data output Raw Bayer 10bits
Video output MPJG/YUV
Maximum Frame Rates 2592*1944 30 FPS
1920*1080 30 FPS
1600*1200 30 FPS
MJPG
Digital interface Type-c USB2.0 1.5m cable
Transfer rates 480MB/S
Power requirements 5V±5%
Storage temperature -20℃ to 70℃
Operating temperature -10℃ to 60℃
OS Support Windows XP/Vista/7/8.1/10/Mac/Android/Linux 2.6.2 (include UVC)
Default lens M12*P0.5 LENS
Lens Construction 3G2P+650IR
F/NO aperture 3.0±5%
EFL effective focal length 4.18 mm±5%
FOV angle 82°±3°
Focus method Fixed focus
Shooting distance 60cm-∞
5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision 0
