Lugar de origen:
PORCELANA
Nombre de la marca:
Sinoseen
Certificación:
RoHS
Número de modelo:
SNS51995-V1.0

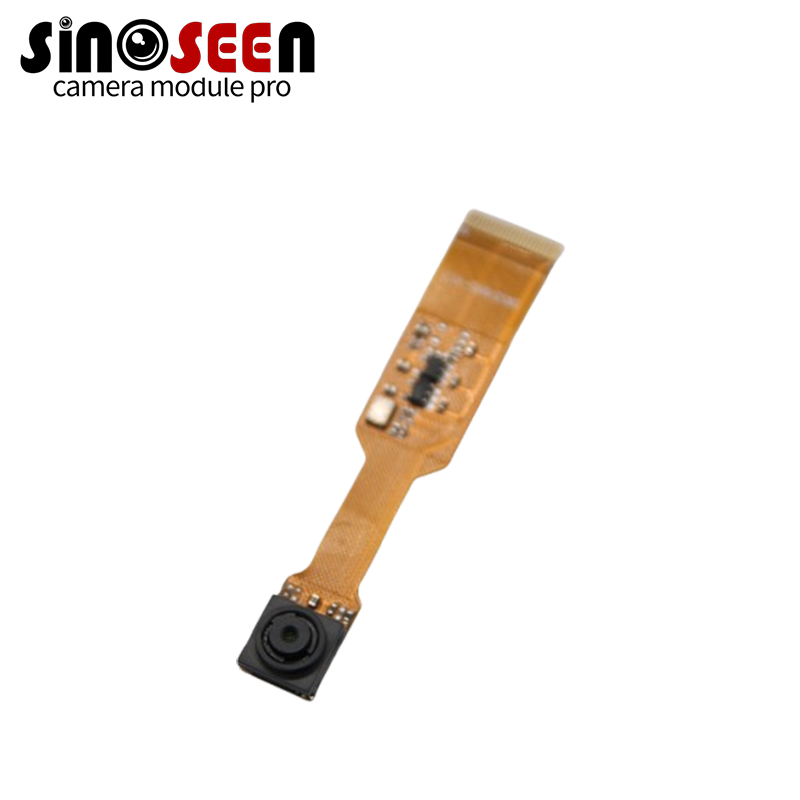

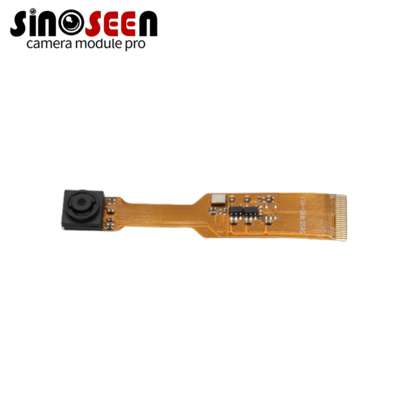

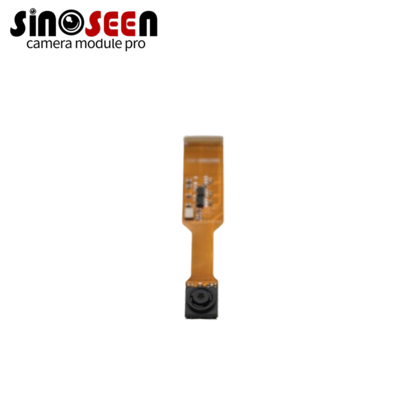

The OV5647 CMOS sensor is a flexible imaging solution designed for both photos and video. It features a 2592 x 1944 active array that captures detailed 5MP images.
For video, it supports 1080P at 30fps, 720P at 60fps, and VGA at 90fps. This range makes it useful for applications from mobile cameras to surveillance systems.
Its 1.4um pixel size ensures good sensitivity. The sensor also supports RAW data formats, giving integrators more freedom for image tuning. With low standby power and compact packaging, the OV5647 works well in portable and embedded devices.
2592 x 1944 5MP image capture
Full HD 1080P 30fps
720P 60fps and VGA 90fps
RAW output formats
Low power for mobile use
| Item | Specification |
|---|---|
| Active Array Size | 2592 × 1944 (QSXGA) |
| Pixel Size | 1.4 µm × 1.4 µm |
| Image Area | 3673.6 µm × 2738.4 µm |
| Lens Size | 1/4" |
| Lens Chief Ray Angle | 24° |
| Output Formats | 8-bit / 10-bit RGB RAW |
| Shutter Type | Rolling shutter |
| Maximum Exposure Interval | 1968 × tRow |
| S/N Ratio (Max) | 34 dB |
| Dynamic Range | 67 dB @ 8× gain |
| Sensitivity | 600 mV/Lux-sec |
| Dark Current | 8 mV/s @ 50°C junction temperature |
| Maximum Image Transfer Rates | - QSXGA (2592 × 1944): 15 fps - 1080p: 30 fps - 960p: 45 fps - 720p: 60 fps - VGA (640 × 480): 90 fps |
| Input Clock Frequency | 6 ~ 27 MHz |
| Power Supply | - Core: 1.5V ±5% (with embedded 1.5V regulator) - Analog: 2.6 ~ 3.0V (2.8V typical) - I/O: 1.7 ~ 3.0V |
| Power Requirements | - Active: 96 mA - Standby: 20 µA |
| Temperature Range | - Operating: -30°C ~ 70°C (junction temperature) - Stable Image: 0°C ~ 50°C (junction temperature) |
| Package Dimensions | 5550 µm × 4730 µm |
