Lugar de origen:
PORCELANA
Nombre de la marca:
Sinoseen
Certificación:
RoHS
Número de modelo:
SNS-DZ1224-48-V1.0

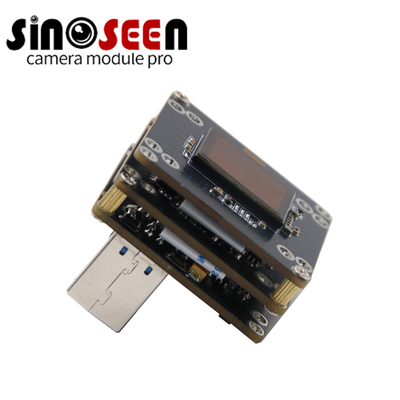

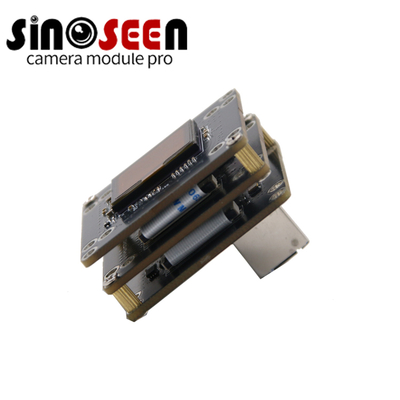

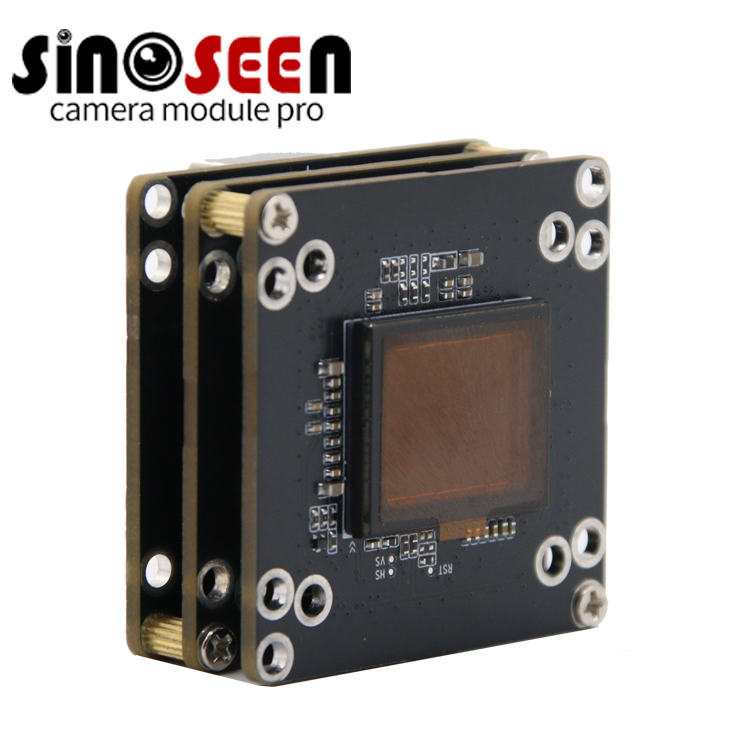

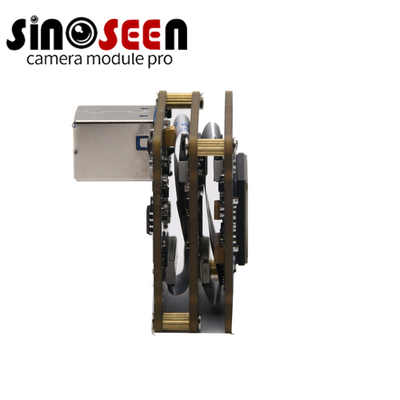

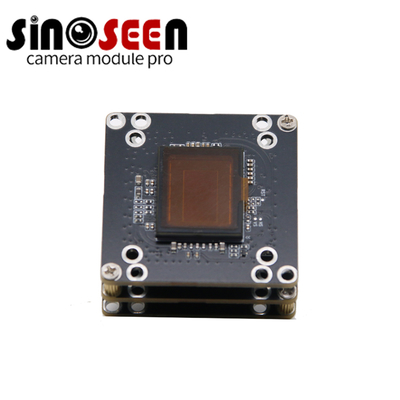

This CMOS USB3.0 camera module is built for machine vision and industrial automation. With a 1/1.2 inch CMOS sensor, it delivers 1920 ×1080 resolution at up to 90fps, ensuring sharp, detailed, and real-time imaging.
The USB3.0 interface provides 3Gbps transfer speed, supporting uncompressed and high frame rate data output. It is compatible with MJPG and YUY2 formats for flexible integration. Users can capture high-quality images and videos without lag.
The camera supports advanced image adjustment including exposure, brightness, contrast, and saturation. It is engineered for low light environments, maintaining excellent performance under challenging conditions.
It works seamlessly with Windows, Linux, Android, and Mac systems, offering plug-and-play connectivity without external drivers. Standard C-mount and custom lenses are supported, enabling flexible adaptation to diverse projects.
Applications include industrial inspection, machine vision systems, quality control, automation, surveillance, and access management.
| Item | Specification |
|---|---|
| Model | Signal SNS-DZ1224-48-V1.0 |
| Image Sensor Size | 1/1.2" inch |
| Effective Pixels | 1920 × 1080 |
| Pixel Size | 5.8 µm × 5.8 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Resolution & Frame Rates |
- 1920 × 1080 → MJPG 90 FPS / YUY2 60 FPS - 1280 × 960 → MJPG 90 FPS / YUY2 90 FPS - 1280 × 720 → MJPG 90 FPS / YUY2 90 FPS - 640 × 480 → MJPG 90 FPS / YUY2 90 FPS |
| SNR (max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Digital Interface | USB3.0 (Type-B) |
| Transfer Rates | 3 Gbps |
| Power Requirements | 5V ± 5% |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Temperature | -30℃ ~ 60℃ |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Effective Focal Length (EFL) | / |
| F/NO (Aperture) | / |
| Field of View (FOV) | / |
| Optical Distortion | / |
| Lens Construction | / |
| Lens View (Default Lens) | / |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
