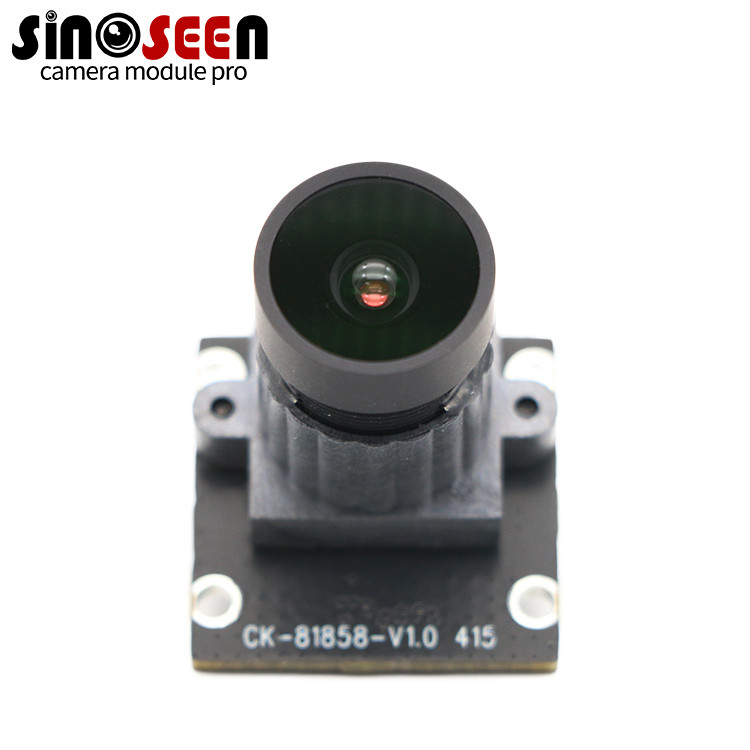

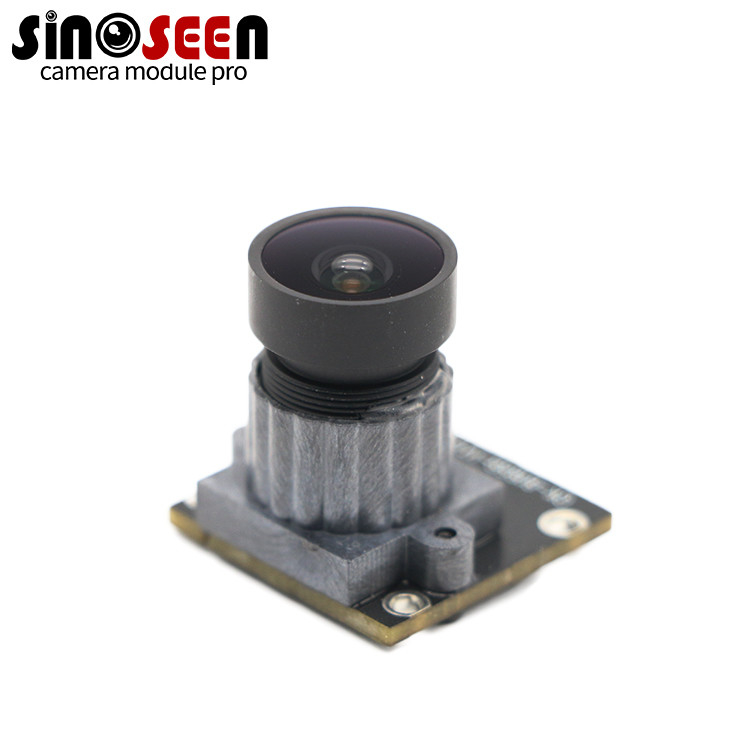

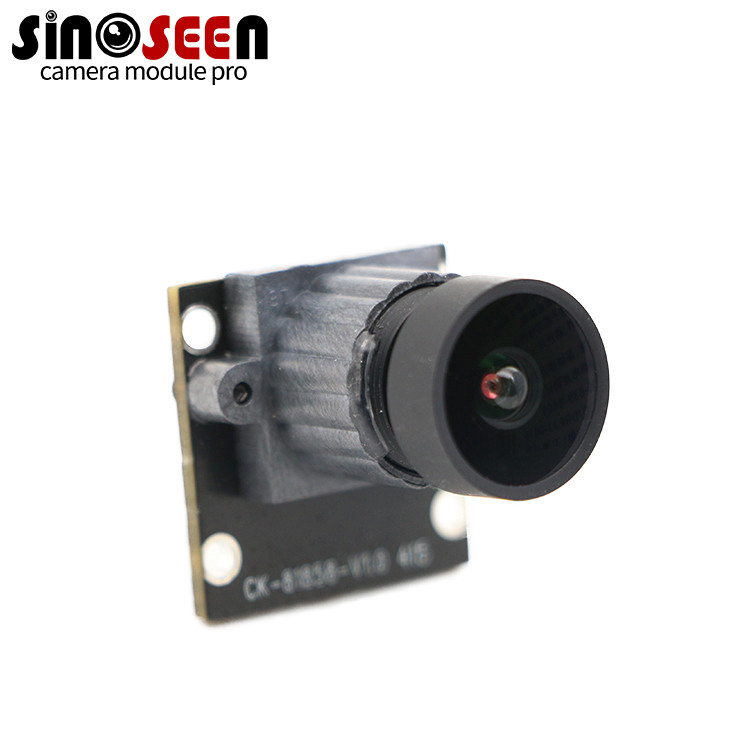

IMX415 8MP MIPI Camera Module with 4K UHD at 30FPS
Datos del producto:
| Lugar de origen: | Shenzhen, China |
| Nombre de la marca: | Sinoseen |
| Certificación: | RoHS |
| Número de modelo: | CK-81858-V1. ¿Qué quiere decir?0 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 3 |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | bandeja+bolsa antiestática en cartón |
| Tiempo de entrega: | 2-3 semanas |
| Condiciones de pago: | T/t |
| Capacidad de la fuente: | 500000 pedazos/mes |
|
Información detallada |
|||
| Tipo: | módulo de la cámara | Sensor de la misma: | IMX415 1/2.8 pulgadas |
|---|---|---|---|
| Resolución: | 8mp 3840*2160 | Dimensiones: | Personalizable |
| Velocidad de fotogramas: | 30 cuadros por segundo | FOV de la lente: | 128° (opcional) |
| Interfaz: | MIPI | Características: | 4K UHD |
| Resaltar: | IMX415 8MP MIPI camera module,4K UHD MIPI camera module,30FPS MIPI camera module with warranty |
||
Descripción de producto
| Type | Camera Module |
| Sensor | IMX415 1/2.8 inch |
| Resolution | 8MP 3840*2160 |
| Dimensions | Customizable |
| Frame Rate | 30FPS |
| Lens FOV | 128°(optional) |
| Interface | MIPI |
| Feature | 4K UHD |
Designed for next-gen smart devices, this camera module uses Sony's IMX415 sensor to deliver ultra-clear 4K resolution at 30 frames per second. With a slim profile and fixed focus, it fits into tight enclosures without compromising performance.
The module is tailored for devices like digital signage, surveillance cameras, and AI edge computing where detail accuracy and compact size are essential. MIPI output ensures high-speed transmission for real-time processing.
- Sony IMX415 8MP CMOS sensor
- 4K UHD @ 30fps
- Small form factor for compact devices
- Fixed focus lens for maintenance-free performance
- Supports Windows, Linux, Android, macOS
| Module | CK-81858-V1.0 |
| Sensor | IMX415 CMOS |
| Pixel | 8MP |
| Most effective pixels | 3840*2160 |
| Pixel Size | 1.45um*1.45um |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
We can customize image sensors, lens options, interface types (USB, DVP, MIPI), and even firmware settings. Our engineers help reduce your time to market with fully tailored camera module solutions.
Shenzhen Sinoseen Technology is your one-stop camera module provider. From R&D to delivery, our mission is to supply top-tier components for cutting-edge industries. Trusted globally, powered locally.
