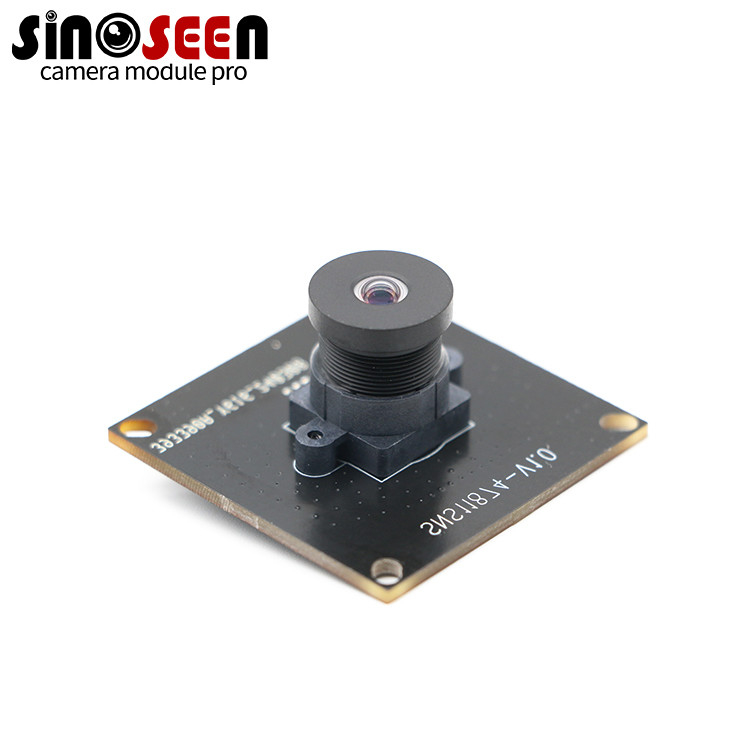

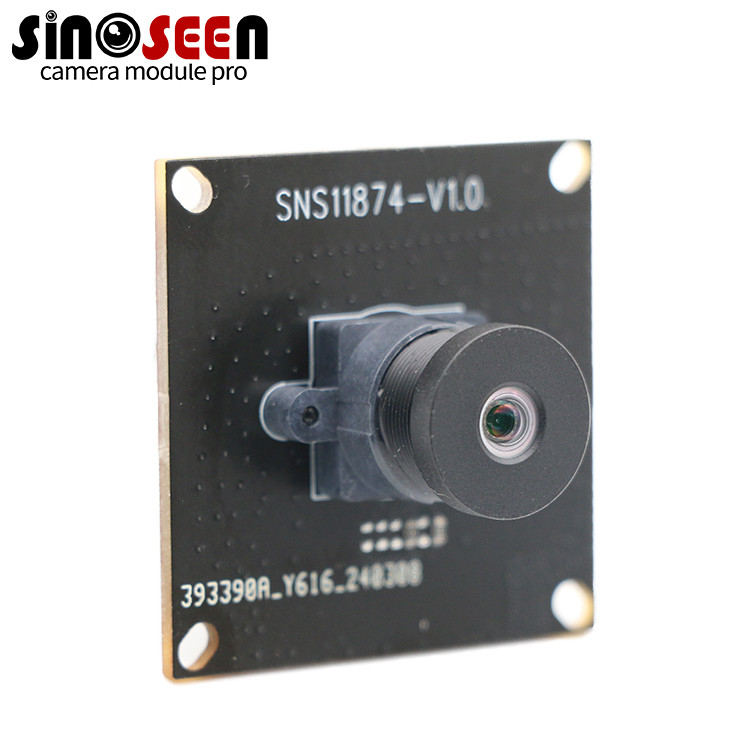

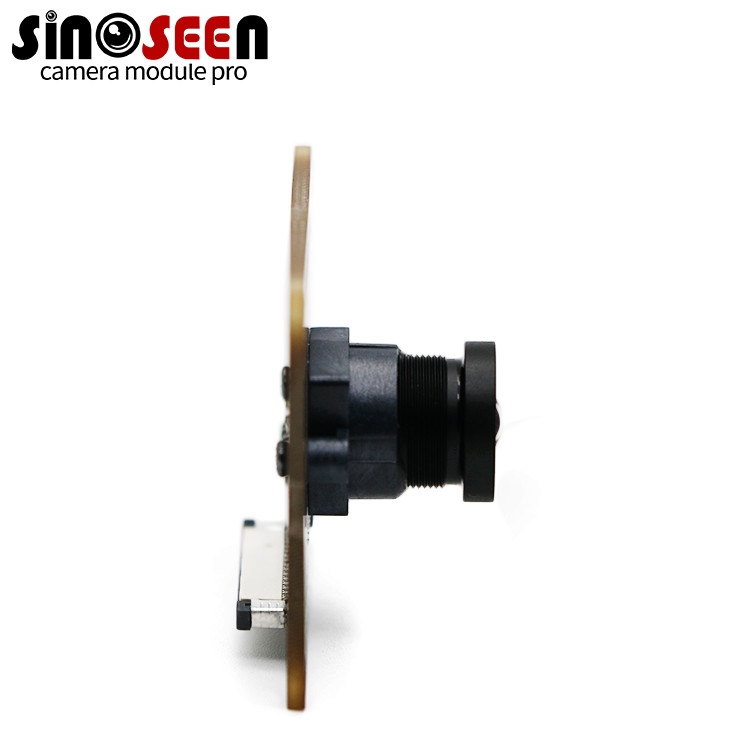

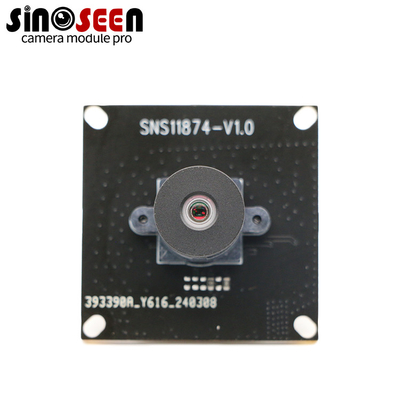

OV9281 1MP MIPI Camera Module 1280x800 120fps Global Shutter
Datos del producto:
| Place of Origin: | Shenzhen,China |
| Nombre de la marca: | Sinoseen |
| Certificación: | RoHS |
| Model Number: | SNS11874-V1.0 |
Pago y Envío Términos:
| Minimum Order Quantity: | 3 |
|---|---|
| Precio: | Negociable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Información detallada |
|||
| Type: | MIPI Camera Module | Sensor: | OV9281 1/4 inch |
|---|---|---|---|
| Resolution: | 1MP 1280*800 | Dimensions: | Customizable |
| Frame Rate: | 120FPS | Lens FOV: | 48°(optional) |
| Interface: | MIPI | Feature: | low-light sensitivity and achieves high-quality imaging |
| Resaltar: | OV9281 MIPI camera module,1MP global shutter camera,1280x800 MIPI module |
||
Descripción de producto
High-performance camera module featuring the OmniVision OV9281 1MP CMOS global shutter sensor, capable of capturing 1280×800 resolution at 120 frames per second via a 2-lane MIPI CSI-2 interface. Designed for embedded vision and edge AI platforms, its global shutter technology eliminates motion artifacts in high-speed environments.
- 1MP resolution (1280×800) @ 120fps
- Global shutter technology for motion artifact elimination
- 3μm pixel size for excellent low-light sensitivity
- 10-bit RAW output for flexible post-processing
- Fixed-focus lens for simplified integration
- Compact design for embedded vision systems
| Module | SNS11874-V1.0 |
|---|---|
| Sensor | OV9281 CMOS |
| Resolution | 1MP (1280×800) |
| Pixel Size | 3μm×3μm |
| Frame Rate | 120fps |
| Output Interface | 2-lane MIPI |
| Output Formats | 10-bit RAW |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows, Linux (UVC), Android, macOS |
- Robotics and industrial automation
- Smart kiosks and gesture interfaces
- Embedded AI modules (Jetson, RK3588, NXP)
We offer full customization support, including:
- Lens options (FOV, aperture, distortion control)
- PCB size and layout adjustments
- Interface conversions (USB, DVP, MIPI)
- Driver tuning and firmware optimization
Whether you're building a prototype or scaling to mass production, our engineering team will work with you to tailor the perfect camera module solution.
Shenzhen Sinoseen Technology Co., Ltd. is a professional camera module manufacturer with years of experience in CMOS imaging. We specialize in OEM/ODM development of USB, MIPI, and DVP camera modules for various applications such as smart homes, industry, AI, and security.
With in-house R&D and a full production line, we ensure quality, flexibility, and competitive pricing.
