8MP IMX317 USB Camera Module 4K 30FPS
Datos del producto:
| Place of Origin: | Shenzhen,China |
| Nombre de la marca: | Sinoseen |
| Certificación: | RoHS |
| Model Number: | SNS-DZ1009-V1.0 |
Pago y Envío Términos:
| Minimum Order Quantity: | 3 |
|---|---|
| Precio: | Negociable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Información detallada |
|||
| Type: | USB Camera Module | Sensor: | IMX317 1/2.5 inch |
|---|---|---|---|
| Resolution: | 8MP 3840*2160 | Dimensions: | Customizable |
| Frame Rate: | 30FPS | Lens FOV: | 82°(optional) |
| Interface: | USB | ||
| Resaltar: | 8MP USB camera module,4K 30FPS USB camera,IMX317 sensor camera module |
||
Descripción de producto
Sinoseen USB Camera Module with 8MP IMX317 Sensor 4K 30FPS
Key Features
- High-resolution 8MP IMX317 CMOS sensor (1/2.5 inch)
- 4K Ultra HD video at 3840×2160 resolution
- Smooth 30 frames per second performance
- Compact and customizable dimensions
- Fixed-focus design for simplified integration
- USB 2.0 interface for plug-and-play functionality
- Wide 82° field of view (optional)
- Compatible with Windows, Linux, Mac OS, and Android
Product Overview
The Sinoseen SNS-DZ1009-V1.0 Camera Module delivers exceptional 4K video performance for digital cameras, dash cams, sports cameras, and industrial applications. Featuring Sony's premium IMX317 sensor, this module captures crisp, detailed images at 30fps, overcoming the limitations of traditional modules with poor image quality or low frame rates.
The fixed-focus design simplifies camera structure while maintaining excellent image quality, ideal for applications where working distance is known. The USB interface enables easy integration with various host devices, from security systems to industrial automation equipment.
Technical Specifications
| Module | SNS-DZ1009-V1.0 |
|---|---|
| Sensor | IMX317 CMOS |
| Image sensor size | 1/2.5 inch |
| Resolution | 8MP (3840×2160) |
| Pixel Size | 1.62μm×1.62μm |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Interface | USB 2.0 |
| Video output | MJPG/YUV |
| Output formats | RAW Bayer 10bits |
| Operating temperature | 0°C to 60°C |
| Storage temperature | -20°C to 70°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (UVC), Mac OS X 10.4.8+, Android 4.0+ |

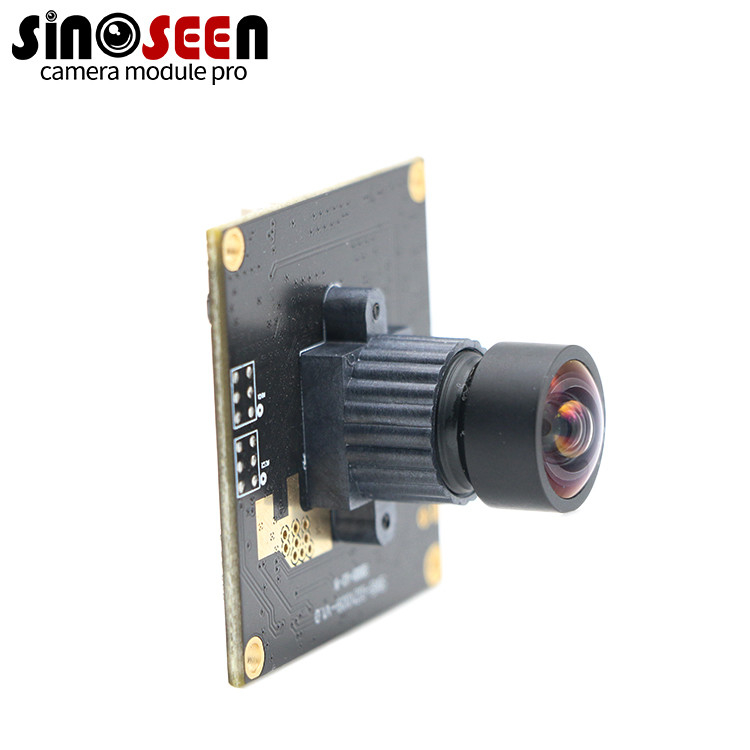

Product Images

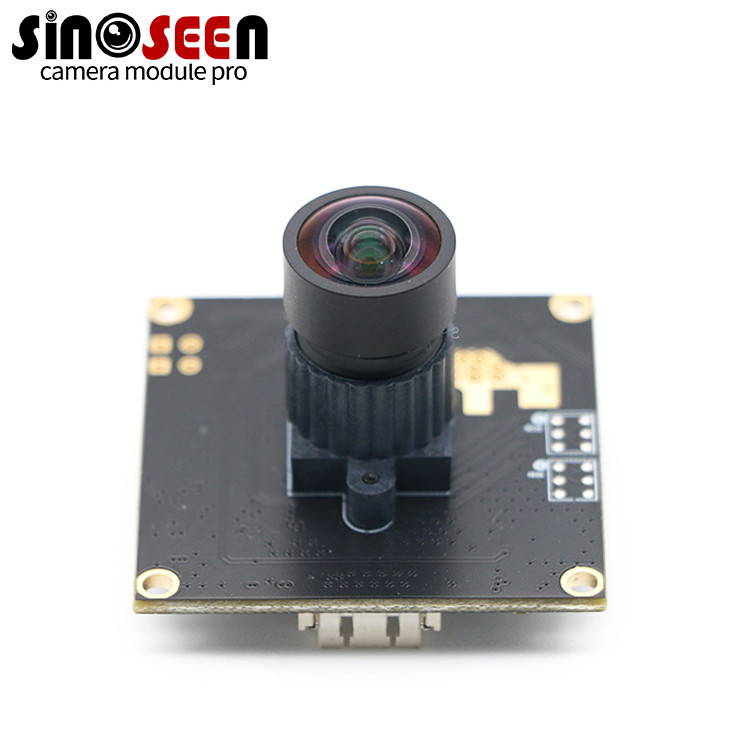

Front View

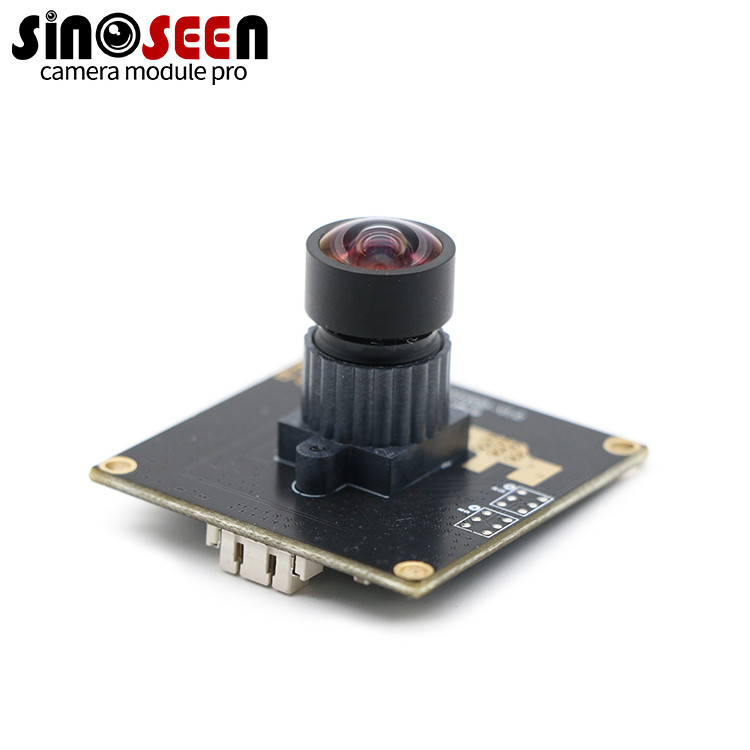

Side View

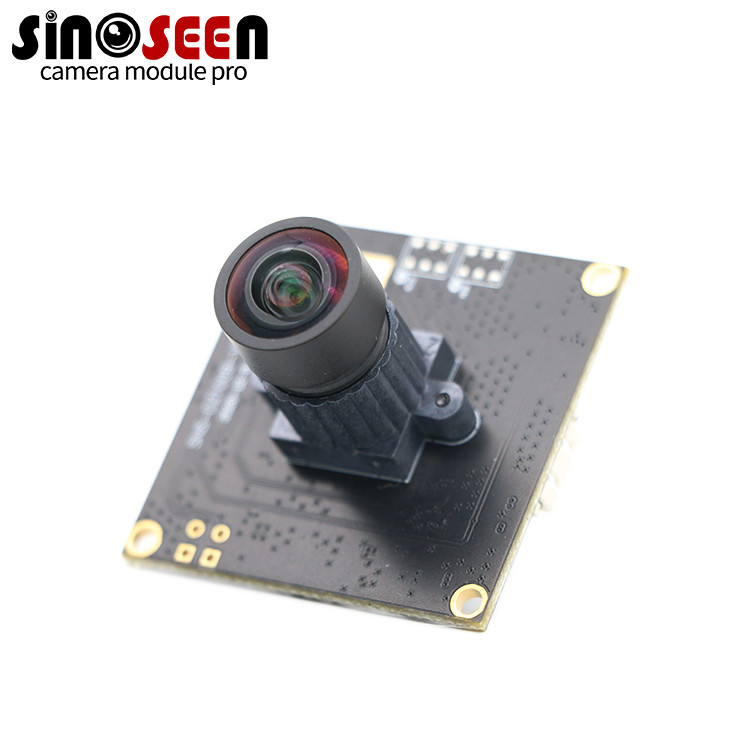

Top View
Connection Interface
In Use
Applications
Ideal for digital cameras, dash cams, sports cameras, security surveillance systems, industrial automation, and any application requiring reliable 4K video capture with easy USB integration.
