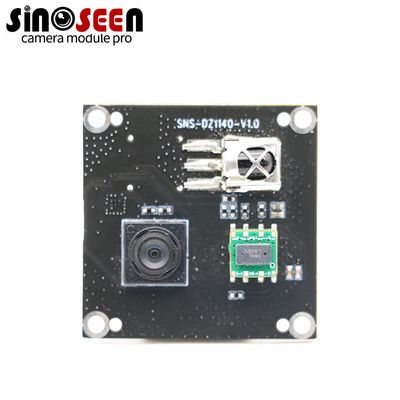

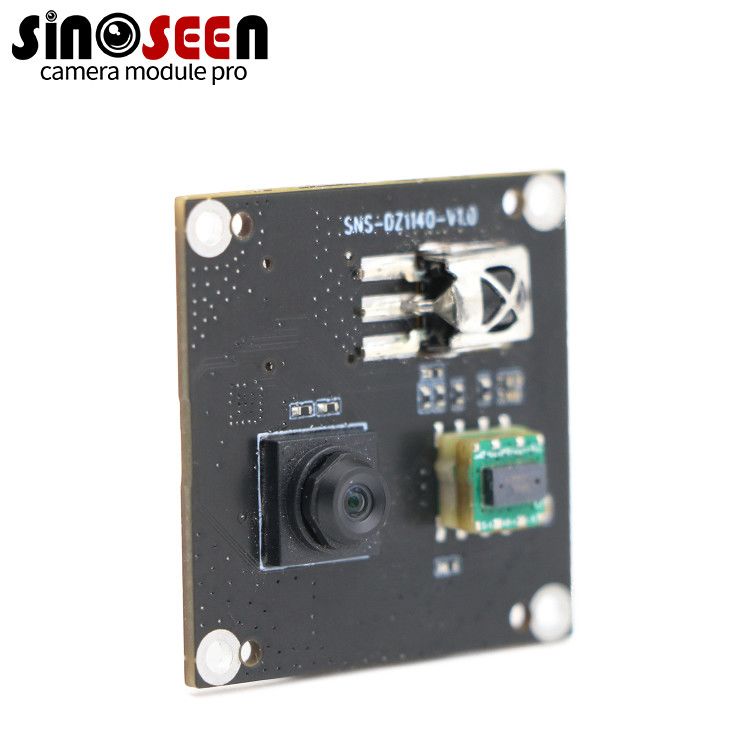

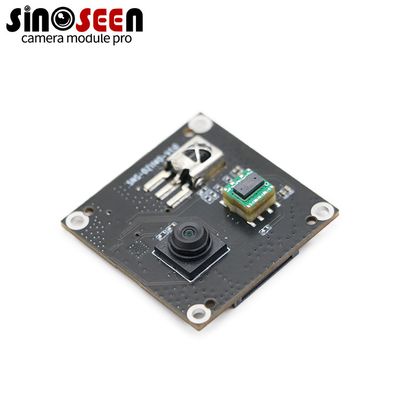

Smooth 30 Frames per Second Video Capture Sinoseen  BF20A6 USB Camera Module for Video Conference Phones

Smooth 30 Frames per Second Video Capture Sinoseen BF20A6 USB Camera Module for Video Conference Phones

Datos del producto:

Lugar de origen: Shenzhen, China
Nombre de la marca: Sinoseen
Certificación: RoHS
Número de modelo: El SNS-DZ1140-V1.0

Pago y Envío Términos:

Cantidad de orden mínima: 3
Precio: Negociable
Detalles de empaquetado: bandeja+bolsa antiestática en cartón
Tiempo de entrega: 2-3 semanas
Condiciones de pago: T/t
Capacidad de la fuente: 500000 pedazos/mes
Mejor precio Contacto

Información detallada

Tipo: Módulo de cámara USB Sensor de la misma: BF20A6 1/10 de pulgada
Resolución: 30W 640*480 Dimensiones: Personalizable
Velocidad de fotogramas: 30 cuadros por segundo FOV de la lente: 51°
Interfaz: Usb

Descripción de producto

Smooth 30 Frames per Second Video Capture Sinoseen BF20A6 USB Camera Module for Video Conference Phones
Product Attributes
Attribute Value
Type USB Camera Module
Sensor BF20A6 1/10 inch
Resolution 30W 640*480
Dimensions Customizable
Frame Rate 30FPS
Lens FOV 51°
Interface USB
Product Description

Still searching for a camera module that balances high-quality video, compact design, and cost-effectiveness for your video conference phone equipment? The Sinoseen SNS-DZ1140-V1.0 Camera Module is your ideal choice!

It features a BF20A6 1/10-inch CMOS image sensor, delivering 640x480 resolution and smooth 30 frames per second video capture capabilities, ensuring your conference calls are clear and stable, eliminating the pain points of traditional devices with choppy or blurry footage.

This module utilizes a fixed-focus lens, simplifying the design and removing the need for complex autofocus mechanisms, significantly reducing costs and enhancing reliability. Its USB interface makes integration with various video conferencing systems and devices exceptionally easy, truly offering plug-and-play functionality and saving your development time.

The BF20A6 sensor also boasts good low-light performance and sensitivity, ensuring clear images under various lighting conditions. Meanwhile, its ultra-low 30W power consumption makes it an energy-efficient and eco-friendly solution. Choose the Sinoseen SNS-DZ1140-V1.0 to bring a high-quality, high-efficiency, and easy-to-integrate visual solution to your video conference devices!

Specifications
Module SNS-DZ1140-V1.0
Sensor BF20A6 CMOS
Image sensor size 1/10 inch
Pixel 30W
Most effective pixels 640*480
Pixel Size 2.25um*2.25um
Frame rate 30fps
Optical distortion <=15.5%
Image sensor Data output RAW Data 10bits
Focus type Fixed focus
Output interface USB2.0
Video output YUV
Output formats RAW Bayer 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
