OV5640 5MP CMOS Image Sensor Module for ESP32 Camera
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | Sinoseen |
| Certificación: | RoHS、ISO9001、CE |
Pago y Envío Términos:
| Cantidad de orden mínima: | 5 |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | bandeja+bolsa antiestática en cartón |
| Tiempo de entrega: | 2-3week |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 500000 pedazos/mes |
|
Información detallada |
|||
| Type: | ESP32 Camera Module | Sensor: | OV5640 |
|---|---|---|---|
| Resolution:: | 2592*1944 | Dimensions:: | 38mmx38mm (compatible With 32mmx32mm) |
| Resaltar: | 5MP CMOS Image Sensor Module,ESP32 Camera CMOS Image Sensor Module,OV5640 CMOS Image Sensor Module |
||
Descripción de producto

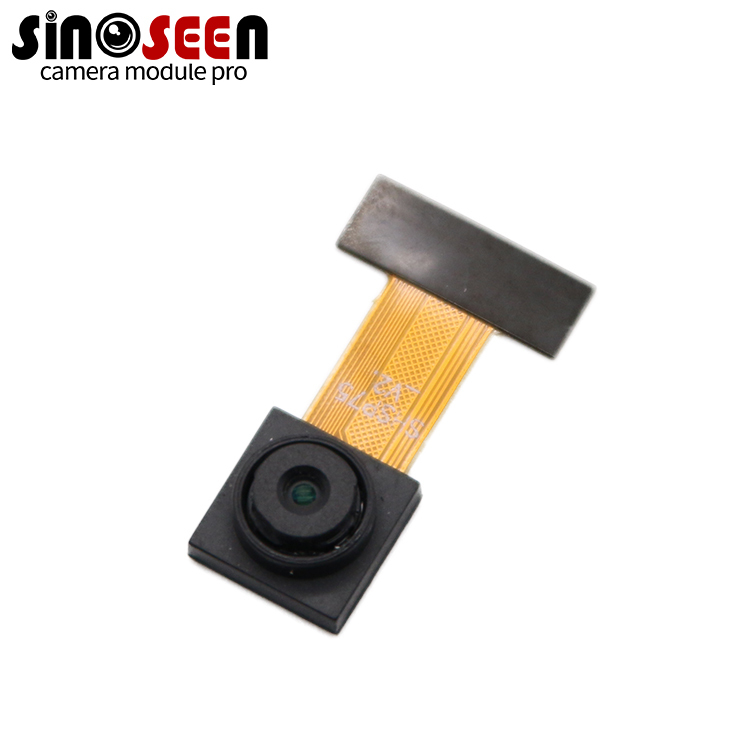

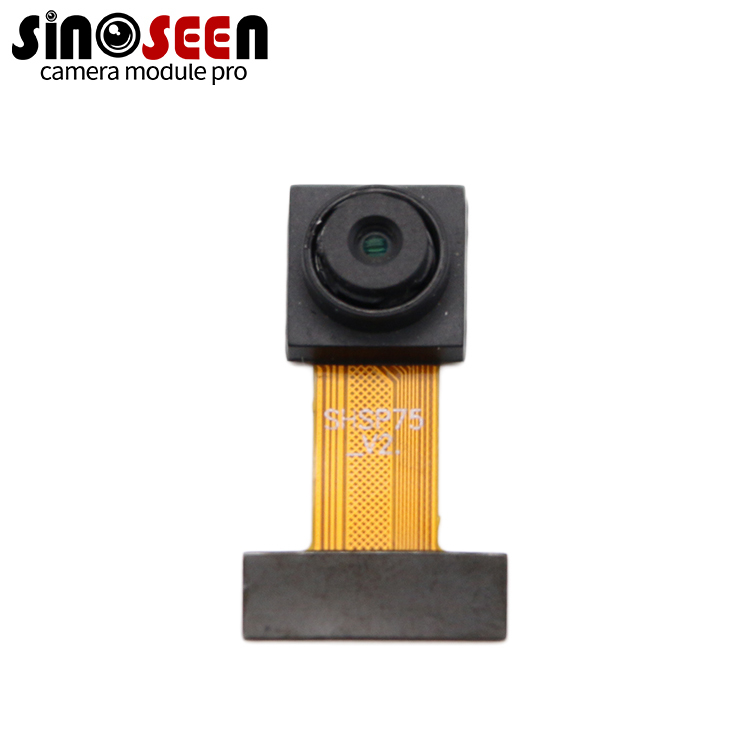

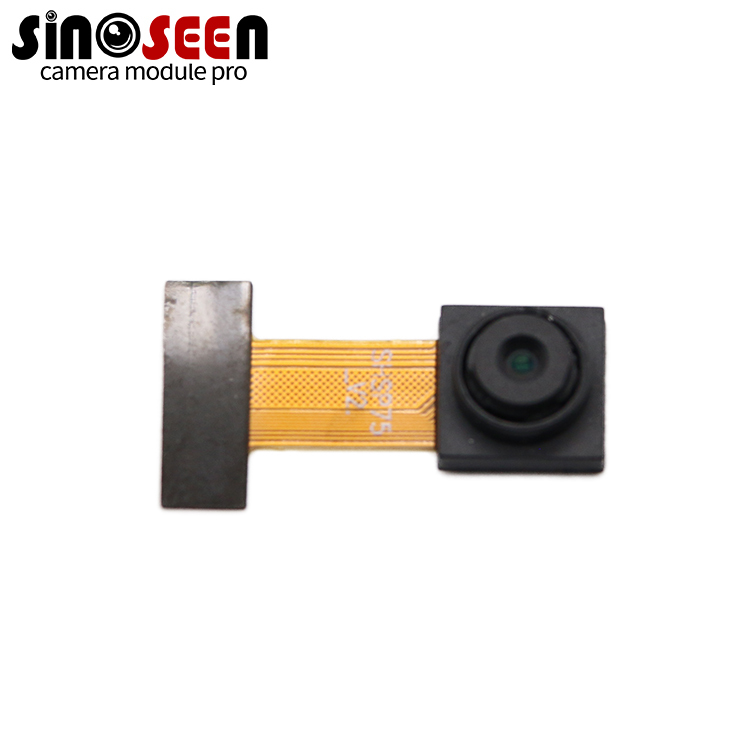

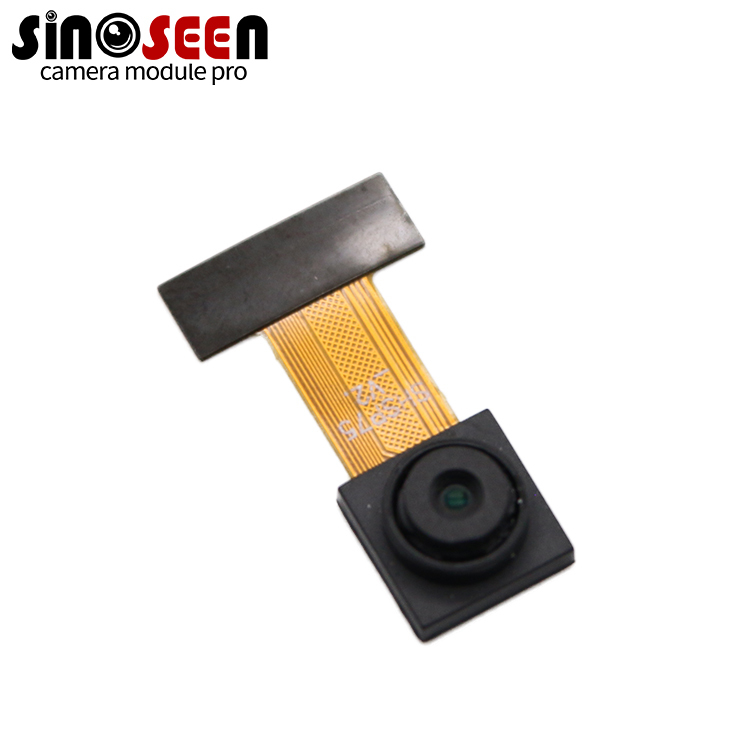

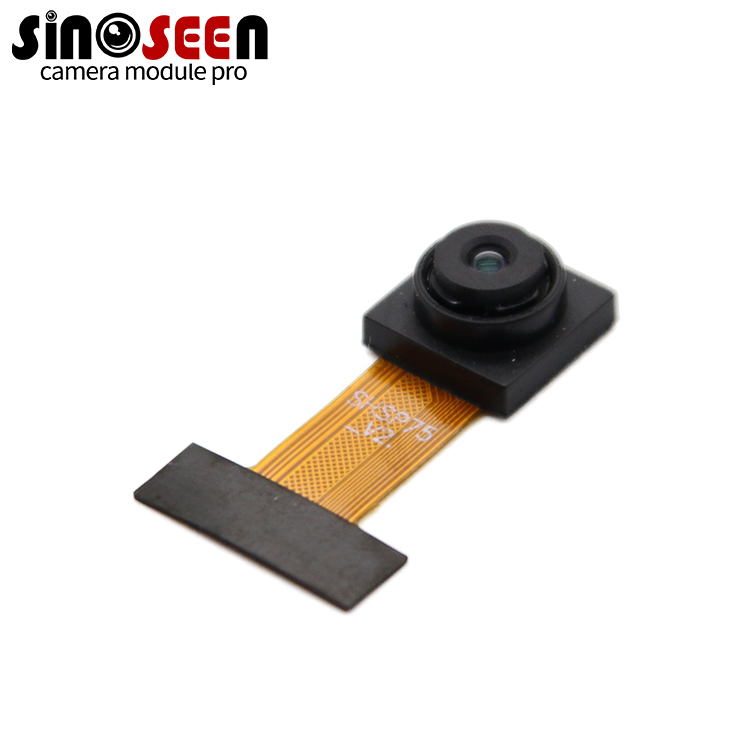

OV5640 5MP CMOS Image Sensor Module for ESP32 Camera
Product Specifications
| Attribute | Value |
|---|---|
| Type | ESP32 Camera Module |
| Sensor | OV5640 |
| Resolution | 2592*1944 |
| Dimensions | 38mmx38mm (compatible With 32mmx32mm) |
Product Overview
This high-performance OV5640 CMOS image sensor module is designed for versatile imaging applications and is particularly suitable for ESP32 camera module integration. It delivers 5 megapixel (2592x1944) resolution output with excellent image quality in a compact 1/4-inch optical format.
The OV5640 sensor utilizes OmniBSI™ technology to capture clear, vivid images across various lighting conditions. It supports multiple output modes including full-frame, sub-sampling, windowed, and arbitrarily scaled image output for flexible capture options. The module's 38mmx38mm footprint (compatible with 32mmx32mm mounting) enables easy integration into diverse projects and equipment.
Key Features
- 5MP HD resolution: Delivers 2592x1944 pixel images with exceptional detail
- OmniBSI™ technology: Enhances image quality and light sensitivity
- Versatile output options: Supports full frame, subsampling, windowing and arbitrary zoom
- Compact design: 1/4 inch optical size ideal for space-constrained applications
- ESP32 compatible: Optimized for Raspberry Pi and machine vision solutions
