Capture Clear and Smooth Full HD Video Raspberry Pi Camera Module and SONY IMX662 Sensor
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | Sinoseen |
| Certificación: | RoHS、ISO9001、CE |
| Número de modelo: | SNS21852-V1.0 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 5 |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | bandeja+bolsa antiestática en cartón |
| Tiempo de entrega: | 2-3week |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 500000 pedazos/mes |
|
Información detallada |
|||
| Tipo de vehículo:: | Módulo de la cámara de la frambuesa pi | Sensor:: | SNOY IMX662 |
|---|---|---|---|
| Resolución:: | 1920*1080 | Las dimensiones:: | 38mmx38m m (compatible con 32mmx32m m) |
| Resaltar: | SONY IMX662 Raspberry Pi Camera Module,Full HD Raspberry Pi Camera Module |
||
Descripción de producto

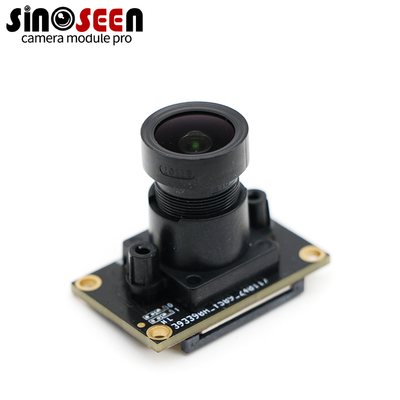

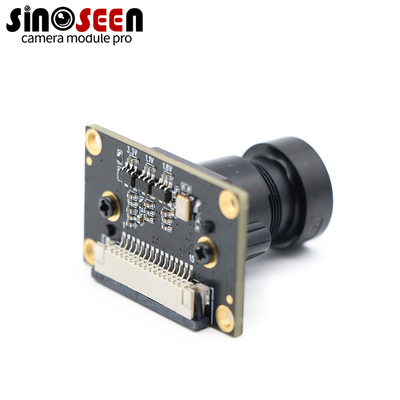

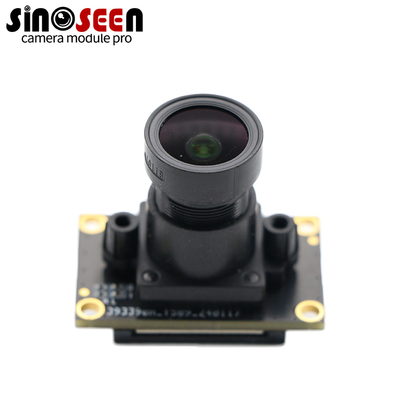

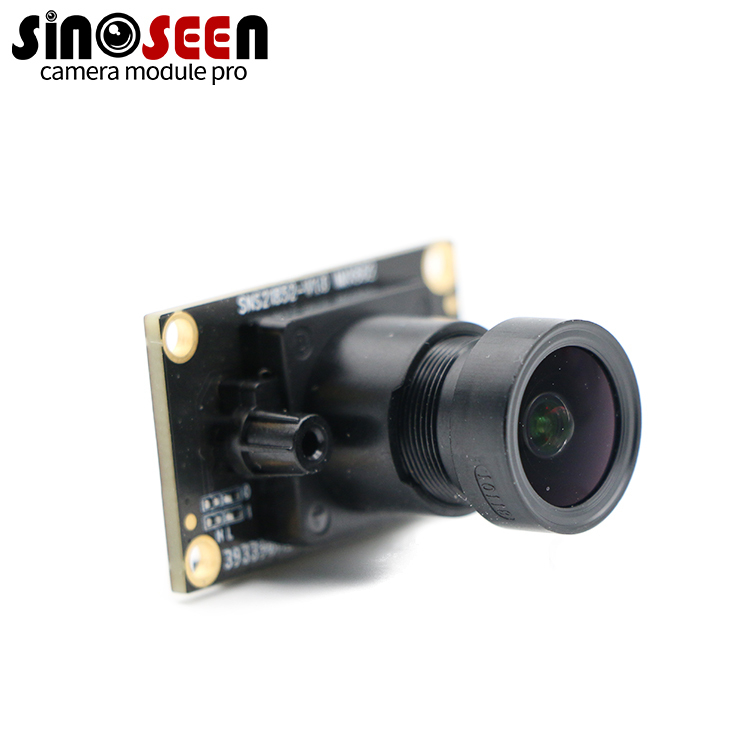

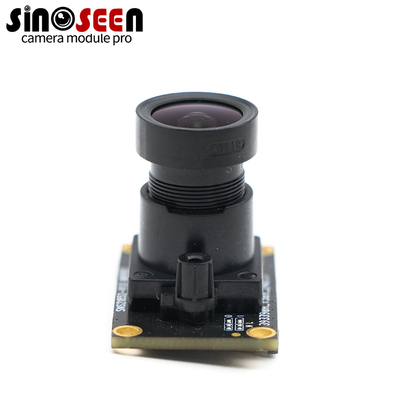

Designed for Raspberry Pi, the SONY IMX662-AAQR-C CMOS camera module is equipped with a 6.45mm image sensor. It can capture images with a resolution of 1920x1080 (Full HD) and supports high-speed video output up to 90 frames per second in 10-bit mode, providing smooth and clear color images for your projects.
The IMX662 sensor has a square array of 2.40M effective pixels, and achieves excellent image quality with high sensitivity, low dark current and no smear through R, G, B primary color mosaic filters. It uses triple power supply of analog, digital and interface to ensure low power operation. The module is equipped with an electronic shutter with variable charge integration time and supports multiple reading modes. This module is particularly suitable for security cameras and performs well in high dynamic range (HDR) applications, and can effectively handle complex lighting environments. Its size is 38mmx38mm, which is compatible with the installation size of 32mmx32mm, making it easy to integrate into various Raspberry Pi projects and help you achieve excellent imaging effects.
Product Highlights
- 1080p@90FPS high-speed output: Provides smooth full HD color video.
- SONY IMX662 sensor: High sensitivity, low dark current, no smear, and excellent image quality.
- Low power design: Triple power supply optimizes energy consumption.
- Support multiple reading modes: Flexible adaptation to different imaging needs.
- HDR application optimization: Excellent performance under complex lighting, especially suitable for security monitoring.
